CRGO Core Laminations

Working Principle

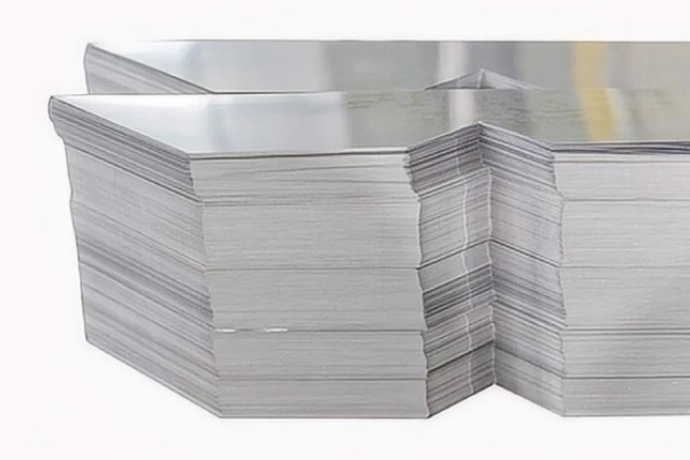

CRGO Core Lamination is made of highly permeable silicon steel sheets, which are stacked to form the iron core and mainly take two core roles:

Efficient magnetic conductivity: in the alternating magnetic field (after the transformer primary side coil is energized), the high magnetic permeability of silicon steel sheet can let the magnetic lines of force pass through efficiently, forming a closed magnetic circuit, realizing the electromagnetic induction between the primary side and the secondary side coil, and completing the voltage transformation.

Suppressing eddy current: The silicon steel sheet itself is very thin (0.23~0.5mm) and the surface is coated with an insulating coating, which can limit the eddy current to a very small range of a single piece, greatly reducing eddy current loss, avoiding overheating of the iron core, and improving the efficiency of the equipment.

Product Feature

Low Loss Design

Silicon steel sheet + insulation coating, greatly reducing eddy current loss and hysteresis loss, more energy efficient than the whole core, long-term operation can significantly reduce the cost of electricity.

Flexible Size

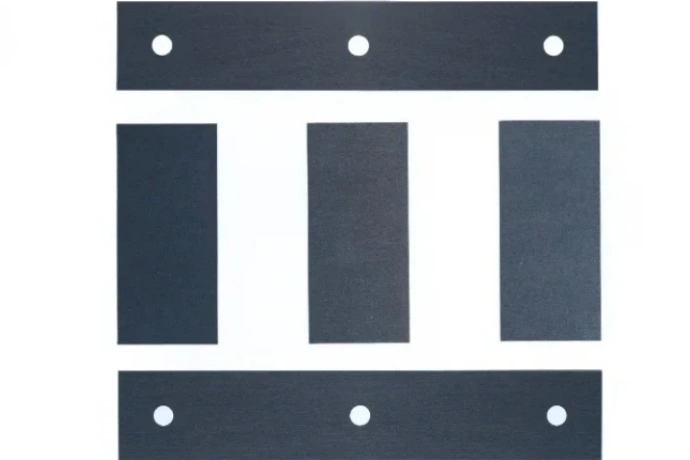

Can be cut to any length, width, hole position and shape according to customer's requirements, perfectly matching the design of transformers of different capacities and voltage levels.

Material selection

Support non-oriented / oriented silicon steel, amorphous alloy and other materials, can be energy-saving projects, special working conditions, such as high temperature and high humidity environment, to do targeted selection.

High material utilization

Precision shearing process reduces the waste of trimmings and lowers the cost of raw materials.

Short production cycle

Faster processing of semi-finished products compared to complete cores, shortening the customer's production lead time

High structural strength

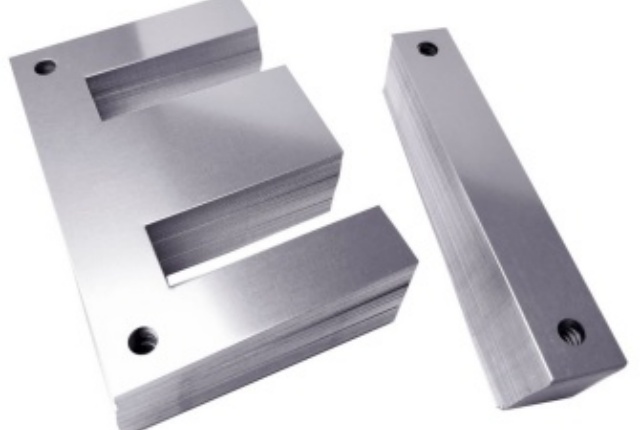

Precise size + fastening hole design, good mechanical stability of the core after stacking, anti-vibration, anti-shock, suitable for outdoor, vehicle and other harsh environments.

RELIABLE QUALITY | BETTER PRICE | FASTER DELIVERY

One-stop transformer core solutions for bulk procurement: quality you can trust, costs you can save, and delivery you can count on.

Full Product Range：Comprehensive selection of transformer cores to cover all your industrial and power application needs.

Custom Design Flexibility: Quickly adapt core dimensions, materials, and performance to your exact project specifications.

Cost-Effective Bulk Supply: Factory-direct pricing for large orders, delivering superior value without compromising on quality.

Guaranteed On-Time Delivery: Adequate production capacity and efficient logistics ensure your bulk orders arrive when you need them.

Get Your Customized Quote

Consult Our Experts for Transformer Core Details & Solutions

Application scenario

Transformer core laminations are widely used in the field of transformers, motors, generators, reactors, transformers and all kinds of electromagnetic equipment.

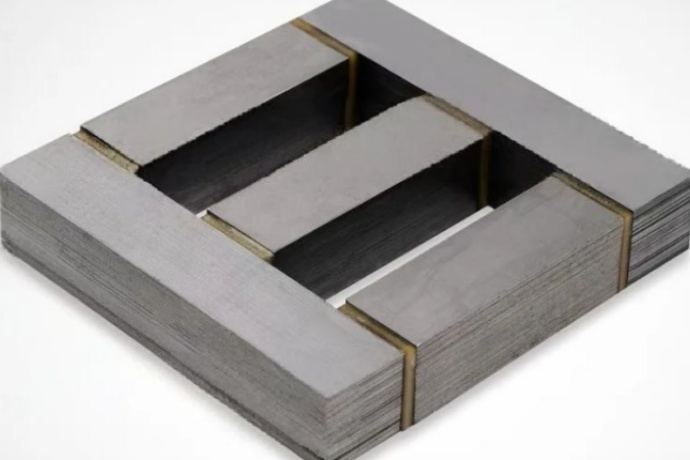

In transformers, clippings are stacked to form the iron core, realizing efficient electromagnetic energy conversion, which is suitable for many kinds of equipment such as distribution transformers, power transformers and dry-type transformers.

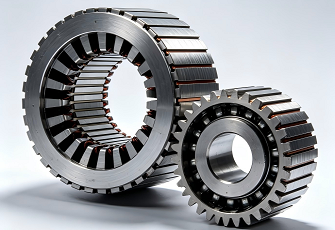

In motors and generators, clippings can effectively reduce eddy current losses, improve operating efficiency, and reduce vibration and noise.

In transformers and reactors, clippings can provide stable magnetic conductivity and low iron loss performance to ensure the accuracy and stability of equipment operation.

Supporting a variety of specifications and customized shapes, they can meet the assembly needs of different equipment.

Frequently Asked Questions

Q:How do iron losses affect transformer operating efficiency?

A:Iron loss directly affects the transformer's no-load power consumption, operating temperature and noise level.
Low iron loss CRGO Core Lamination can effectively reduce energy loss, control temperature rise and reduce operating noise, thus improving the overall operating efficiency and long-term stability of the transformer.

Q:Can CRGO Core Lamination be customized with non-standard shaped dimensions?

A:Yes, we can. Shears can be customized according to customer drawings or technical requirements.
Support: customized size, shaped structure, special holes and slots, non-standard punching design.
The products are widely used in transformers, reactors, motors and transformers.

Q:What insulating coatings are available for CRGO Core Lamination?

A:Common insulating coatings mainly include:
Inorganic insulating coatings -- Good high temperature resistance, excellent insulating properties, suitable for high temperature or high humidity environments.
Organic insulating coatings -- strong adhesion, cost-effective, suitable for conventional power distribution equipment.
You can choose the right type of coating according to the actual operating environment and insulation requirements.

Q: Can you provide samples?

A:Yes, samples are available. We support the provision of standard and customized samples.
Before mass production, we can test: magnetic properties, dimensional accuracy, assembly compatibility, etc. to ensure that the products meet the actual requirements.
To ensure that the product meets the actual use requirements.

Q: What materials are commonly used for CRGO Core Lamination?

A:Commonly used materials include: Silicon oriented steel (CRGO) Silicon unoriented steel (CRNGO)
For high-energy applications, amorphous alloy materials are also available.
Different materials have different performance in the following aspects: Iron loss performance Conductivity performance Cost efficiency
