Stepped‑Cut Split Tape‑Wound C‑Core | Low‑Noise CRGO Reactor Core

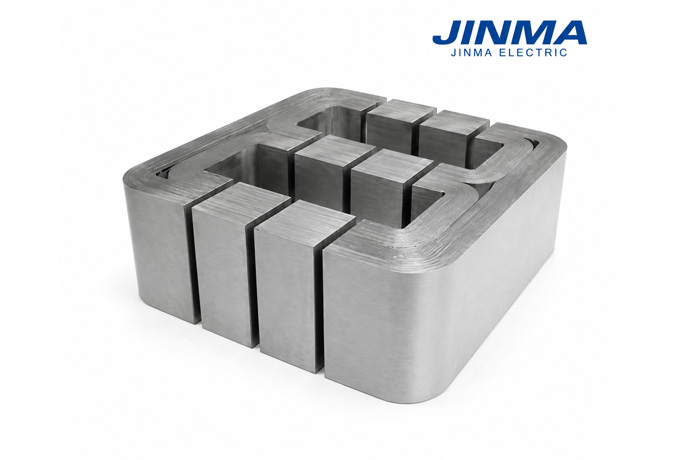

Step‑Cut Reactor C‑Core

All stepped-butt split C-core products are manufactured from high-grade grain-oriented silicon steel with ultra-low iron loss and high magnetic permeability, fully adapting to long-term continuous operation of power frequency electromagnetic equipment.

Steel Thickness Options 0.23mm, 0.27mm, 0.30mm, 0.35mm

Core Material Premium CRGO grain-oriented silicon steel

Process Treatment Full high-vacuum annealing, deburring, insulation coating

Customization Custom outer dimensions, window size, joint steps and insulation requirements

Core Technical Advantages

Compared with standard straight-cut split C-cores, our stepped-cut split tape-wound C-core provides obvious industrial-grade performance upgrades, which are the core reasons for global bulk procurement:

Ultra-Low Working Noise: The staggered stepped-joint design disperses local flux concentration, suppresses vibration and audible hum, perfectly suitable for indoor and noise-sensitive power equipment scenarios.
Minimized Flux Leakage & Low Loss: Smooth overlapping magnetic path reduces no-load loss and flux leakage at joints, improving overall equipment energy efficiency.
High Batch Consistency: Every matched two-piece tape wound C-core undergoes magnetic pairing screening, ensuring stable inductance and uniform performance in batch equipment.
High Production Efficiency for End Manufacturers: Split open structure supports independent coil winding and fast assembly, greatly shortening production lead time and reducing labor costs.
Long-Term Operational Stability: Vacuum annealing eliminates internal winding stress, avoiding performance attenuation and inductance drift during long-term continuous power frequency operation.

Application Fields

The high stability and low-noise characteristics make the stepped joint tape-wound split C-core the preferred solution for medium and high-quality power frequency reactor and inductor projects worldwide:

50Hz / 60Hz power frequency filter reactors and PFC power factor correction inductors
UPS power supplies, inverters, photovoltaic and energy storage power conversion equipment
Industrial control cabinet power inductors and isolation transformers
Low-noise commercial and civil power electromagnetic equipment

Production Process

Strict standardized manufacturing ensures high precision and high stability of each stepped wound C-core:

Precision CRGO steel slitting → Automatic constant-tension tape winding → High-vacuum stress-relief annealing → Precision multi-step staggered cutting → Deburring and joint surface finishing → Insulation coating treatment → Magnetic performance pairing test → Full dimension inspection → Matched pair anti-collision packaging

FAQ

Q1: What is the core advantage of stepped-cut split tape-wound C-core over ordinary straight-cut split C-core?

A1: Different from straight single-line joints, our stepped-butt split C-core adopts staggered multi-step overlapping joints. This structural optimization effectively reduces flux leakage, vibration and working noise, delivers lower core loss and more stable inductance, making it more suitable for high-standard and long-running industrial power equipment.

Q2: Why is stepped joint tape-wound split C-core more popular for reactor mass production?

A2: The two-piece separable structure allows pre-wound coil assembly to greatly improve production efficiency. Meanwhile, professional magnetic pairing technology ensures extremely low batch deviation, which can perfectly meet the consistent quality requirements of large-scale reactor and inductor manufacturing.

Q3: Can you customize dimensions, steel thickness and surface treatment for step-cut reactor C-core?

A3: Full customization is supported. We provide personalized solutions including core size, silicon steel thickness, insulation coating, joint precision and tolerance standards according to customer drawings and application scenarios.

Q4: Can you provide complete test reports and material certification?

A4: Yes. We provide original CRGO material certificates, dimensional inspection reports, core loss test data and batch performance pairing records to support customer quality auditing and project certification.

Custom Service & Quotation

We supply high-quality matched-pair stepped-cut split tape-wound C-core with full technical support. Please provide your core size, inductance requirements, working frequency and equipment application, and our professional engineering team will offer optimized design solution and formal quotation within 24 hours.
